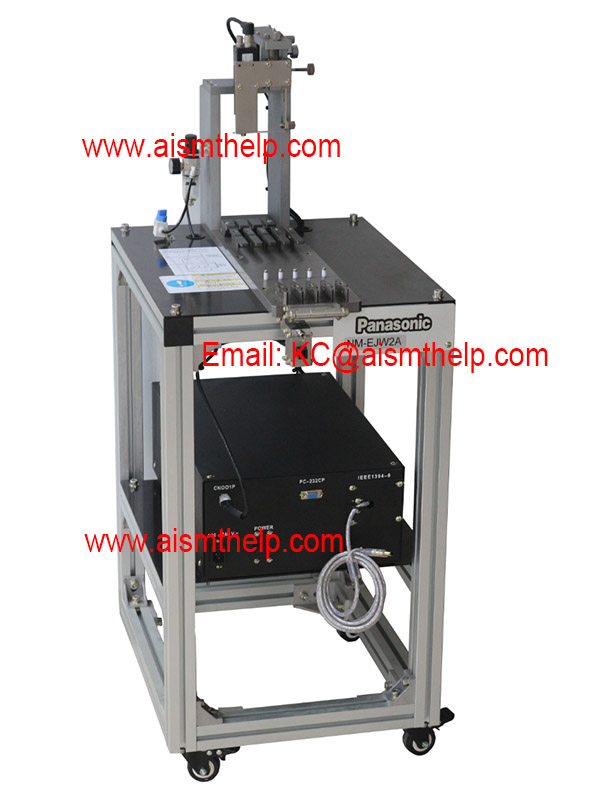

Panasonic Feeder calibration JIG:

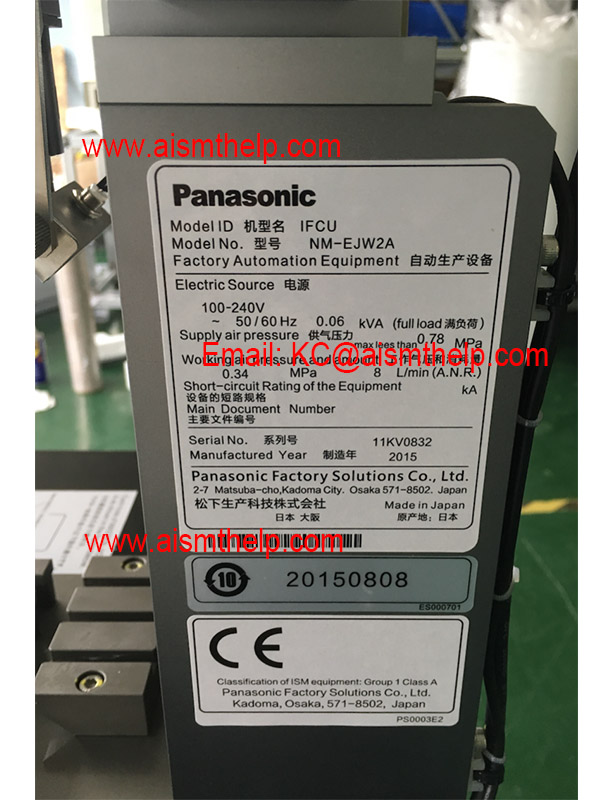

Model:NM-EJW2A
For CM402,CM602,NPM feeder's upgrate
High Accuracy ,Stable Performance

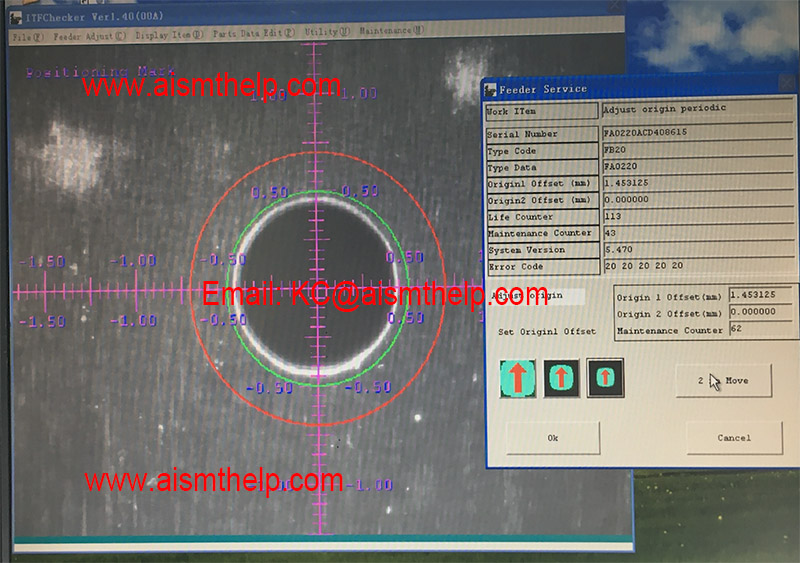

English operation software,easy operate
Want to know more :PLEASE CLICK AND SEND US EMAIL
| Product Specification : | |
|---|---|
| Items | |
| Tape Feeder’s suitable type | January 2, 1900 |
| 8mm Double Tape Feeder(Sensor Y/N) | |
| 8mm Single Tape Feeder(Sensor Y/N) | |
| 12/16mm Tape Feeder(Sensor Y/N) | |
| 24/32mm Tape Feeder(Sensor Y/N) | |
| *Not suitable for 44/56mm-104mm width tape feeder, bulk Feeder,32mm paper adhere Feeder,rod Feeder. Only check the feed action by the feeder side switch |
|

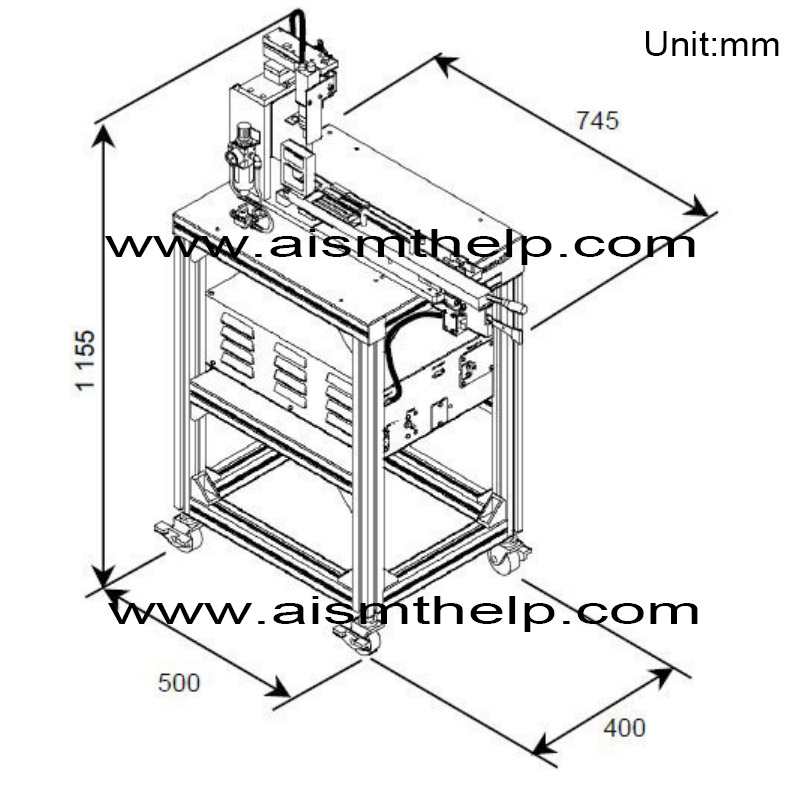

| Size | 400mm(W)X745mm(D)X1155mm(H) |
| Weight | 60KG |
| Power supply | Single Phase: AC100V -240V ±5% 50/60Hz 0.06kVA |
| Air | Pressure :0.29MPa-0.34MPa |
| Flow: 8L/min(A.N.R) Can use φ4 Pipe to connect |
|

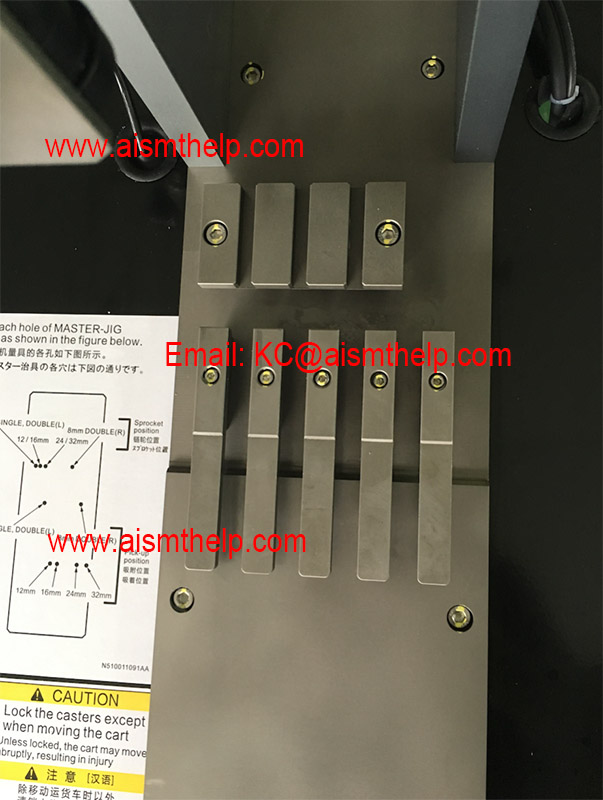

| Items can be checked | 1.Compare to the main JIG, Sucking position, check and adjustment of the position of the sprockets. 2.Feeder software’s upgrade . 3.Feeder repairing’s manage |
