NG/OK Unloader

Model: R-250NOUL  R-330NOUL  R-390NOUL  R-460NOUL

For Exact Price and Quantity ,and Shipping Address ,please feel free to contact us :

Contact Us
Description
Specification
Detail Picture

This equipment is used behind the AOI. After receiving the AOI signal, the machine automatically stores the NG and OK boards separately.

Features

*Strong and stable mechanical design

*PCL control system

*LED TFT touch screen control panel

*With the special structure of anti clamping plate and foolproof

*Automatic storage of NG/OK PCB

*Connections on the back of the AOI to separate the NG/OK PCB on production line

*Standard SMEMA

Technique Parameter
On board timeAbout 6 seconds
Magazine rack replacement timeAbout 20 seconds
Power supply and load100-230v AC (or customized) single phase, max. 300VA
Air pressure and flow4-6 bar, max. 10 L / min
Transmission height920±20mm (or customized)
Transmission directionLeft → right or Right → left (optional)
Circuit board thicknessThinnest 0.4 mm
Number of Magazine racksUpper conveyor: 1, lower conveyor: 1 (or customized)
Step selection1-4 (10mm step)

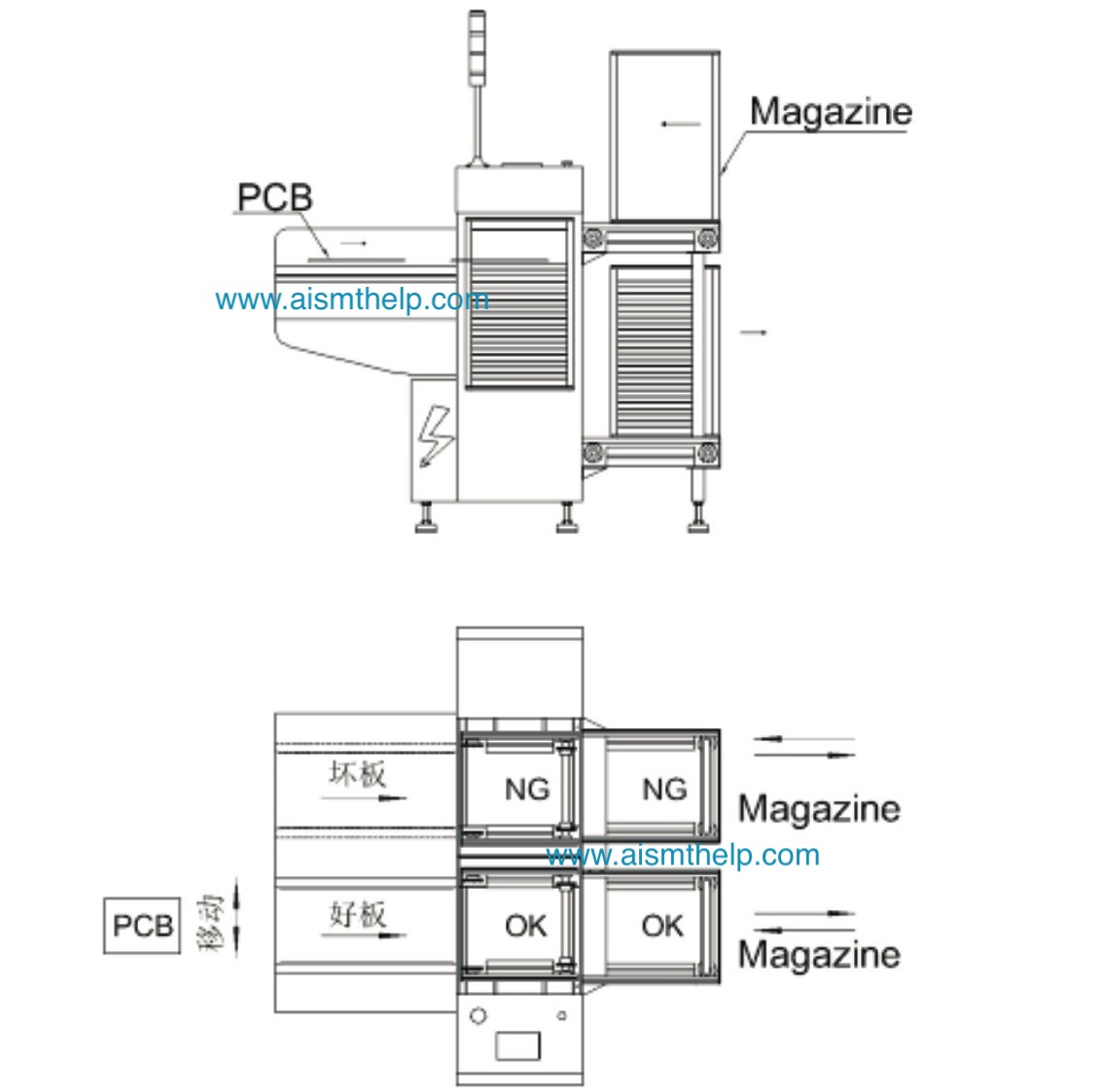

Specification Parameter
Product modelR-250NOULR-330NOULR-390NOULR-460NOUL
Circuit board size (LxW) ~ (LxW)(50x50)~ (350x250)(50x50)~ (450x330)(50x50)~ (530x390)(50x50)~ (530x460)
Overall dimension (LxWxH)1460x1500x1200 1900x1730x12002100x1840x12002100x2110x1200
Magazine Rack size (LxWxH)355x320x565460x400x565535x460x565535x530x565
WeightApprox.210kgApprox.240kgApprox.260kgApprox.280kg
