Model: R-250ULD , R-330ULD , R-390ULD ,R-460ULD

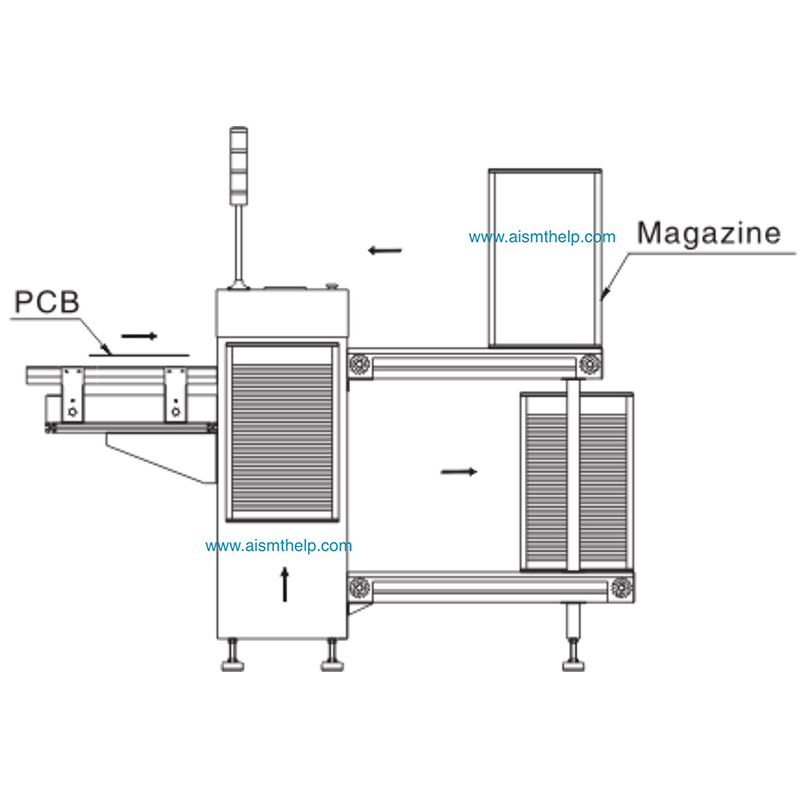

This equipment is used for the unloading board operation of circuit board on SMT production line.
| Features |
|---|
※ PLC control system
※ Control panel is LED true color touch screen
※ Four step pitches selection (10,20,30,40mm)
※ Two magazine racks can be placed
※ With the special structure of anti clamping plate
※ Direction can be selected from left to right or right to left
※ Standard SMEMA , which can be connected with other equipment online
| Technique Parameter | |
|---|---|
| Loading board time | About 6 seconds |
| Magazine Rack replacement time | About 20 seconds |
| Power supply and load | 100 - 230V AC (Or customized), single phase, max. 300VA |
| Air pressure and flow | 4-6 bar, max. 10 L / min |
| Transmission height | 920±20mm (Or customized) |
| Transmission direction | Left → right or Right → left (optional) |
| Circuit board thickness | Thinnest 0.4 mm |
| Number of magazine racks | Upper conveyor: 1, lower conveyor: 1 (or specified by the customer) |
| Step selection | 1-4 (10mm step) |
| Specification Parameter | ||||
|---|---|---|---|---|
| Product model | R-250ULD | R-330ULD | R-390ULD | R-460ULD |
| Circuit board size (LxW) ~ (LxW)mm | (50x50) ~ (350x250) | (50x50)~ (455x330) | (50x50) ~ (530x390) | (50x50) ~ (530x460) |
| Machine Dimension (LxWxH)mm | 1700x780x1200 | 1900x860x1200 | 2200x920x1200 | 2200x1120x1200 |
| Magazine Rack size (LxWxH)mm | 355x320x565 | 460x400x565 | 535x460x565 | 535x530x565 |
| Weight | Approx.160kg | Approx.200kg | Approx.240kg | Approx.260kg |
| Product Pictures |
|---|
